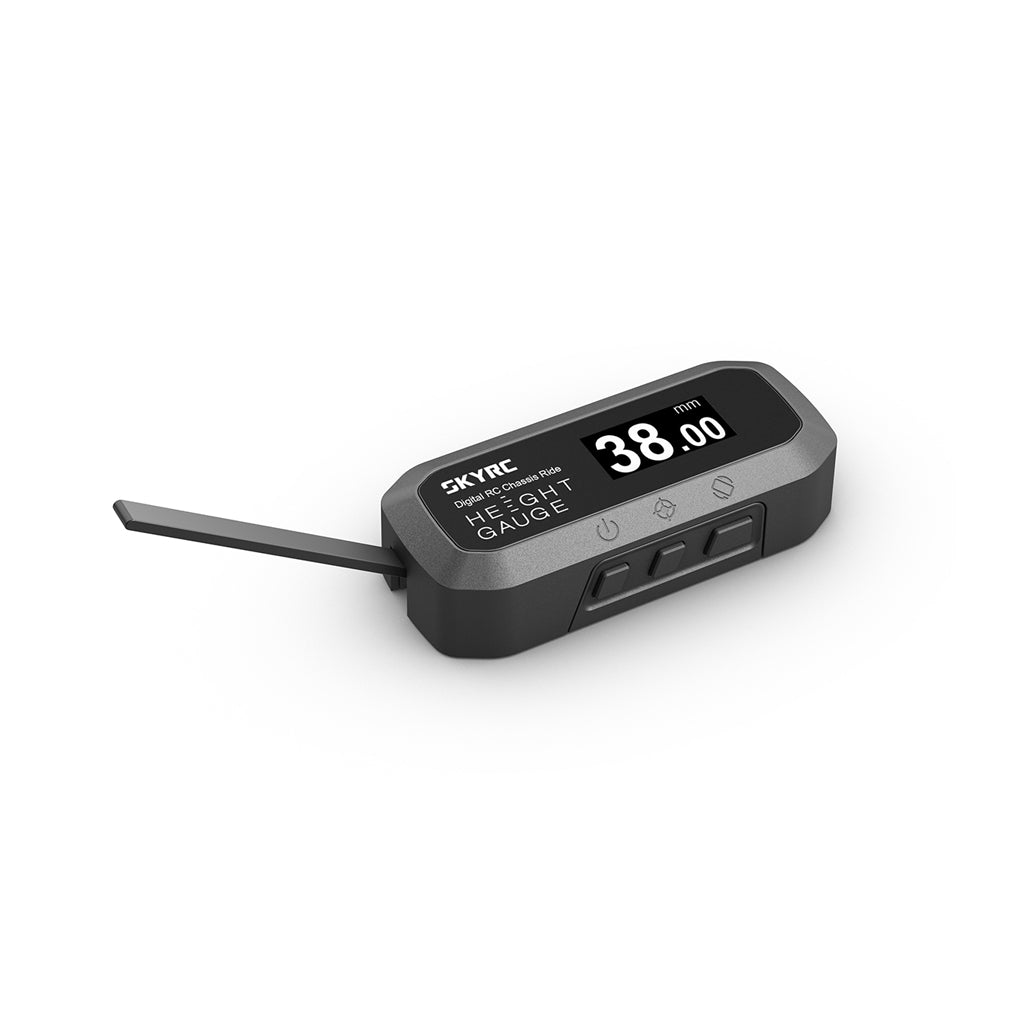

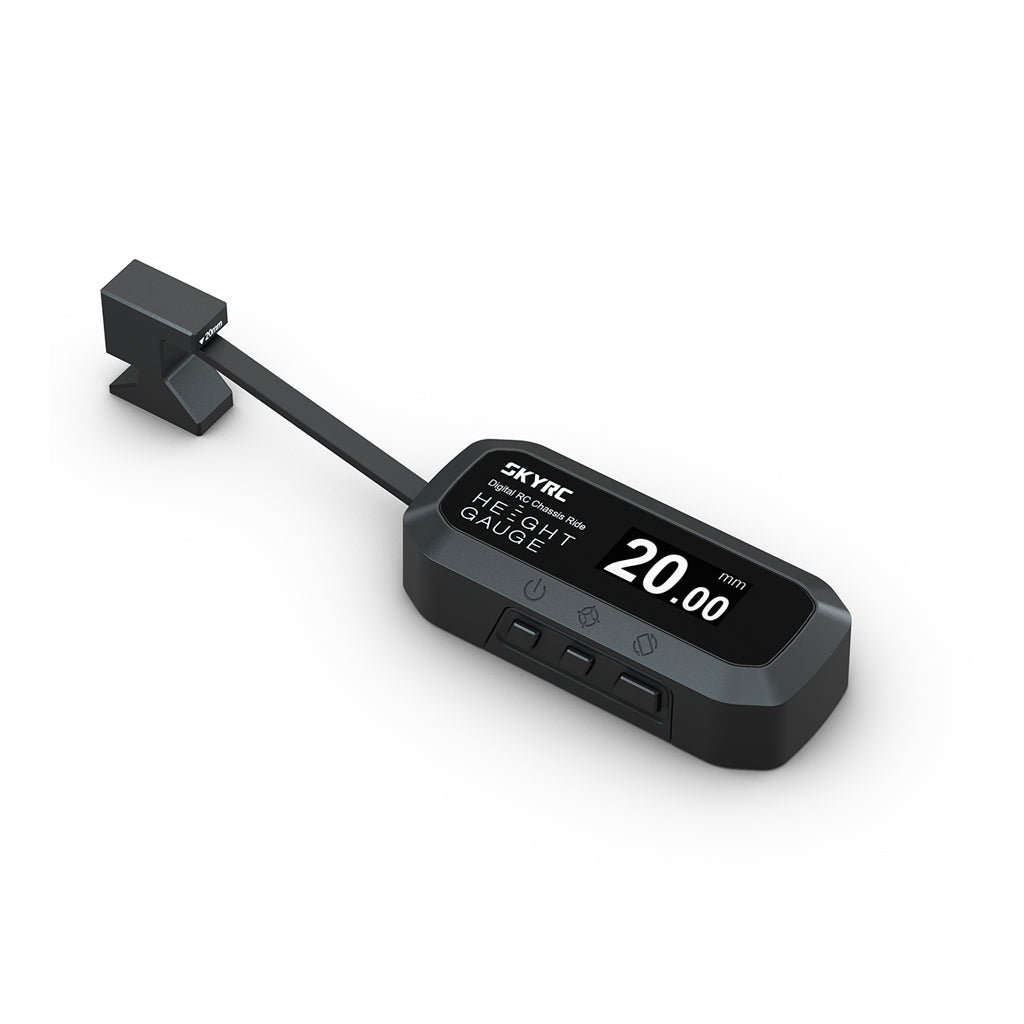

Digital Ride Height Gauge

From SKY RC comes the Digital Ride Height Gauge.

Set the Height. Set the Pace.

Turn guessing into numbers.

Fast readings. Repeatable setup. Every millimetre matters, so every adjustment actually makes sense.

Why Ride Height Matters

Ride height affects centre of gravity, corner balance, and overall grip. Accurate measurements turn millimetres into meaningful adjustments, allowing small changes to become intentional and repeatable. The result is more predictable handling, improved consistency, and better on-track performance.

Consistency is key. A ride height gauge helps you return to a reliable baseline after tyre, spring, or shock oil changes.

From touring and off-road to drift setups, this gauge is equally useful on the setup bench or trackside, helping maintain consistent performance wherever you run.

Traditional RC ride height gauges rely on visual alignment and manual readings. While effective, small variations in angle, eyesight, or positioning can lead to inconsistent results.

A digital ride height gauge removes that uncertainty. Precise numeric readouts turn millimetres into clear data, making adjustments intentional, repeatable, and easy to verify—whether at the bench or during quick trackside changes.

Features

• Accuracy:
  • ±0.3 mm (2–20 mm)
  • ±0.5 mm (above 20 mm)
• Measuring range: 2–38 mm
• Clear digital display
• mm/in unit switching
• 180° display rotation
• Compatible with 1/24, 1/14, 1/12, 1/10, and 1/8 RC models

Every Millimetre, Measured

Powered by an onboard MCU and SKY RC’s proprietary measurement algorithm, the gauge delivers 0.1 mm precision across a 2–38 mm range. Fine adjustments are translated into stable, reliable data, covering common ride height setups across a wide range of RC applications.

2 mm Measuring Blade. Built for Precision.

The slim, flat 2 mm measuring blade easily reaches tight or recessed areas that traditional round rods struggle to access. Its flat, rigid design reduces flex during measurement, helping keep readings stable, consistent, and repeatable.

Multi-Point Calibration. Measure Right.

Built-in guided calibration ensures accuracy from the start. Using the included calibration block, the gauge verifies measurements at 2 mm, 10 mm, and 20 mm, automatically stepping through each reference point for reliable and repeatable results.

Always the Right Way Up

Setup doesn’t always happen from one direction. With a single button press, the display rotates 180°, keeping readings clear and easy to view from any angle.

Fits ’Em All

Designed for seamless compatibility with 1/24, 1/14, 1/12, 1/10, and 1/8 RC models, one gauge can cover everything from micro setups to full-scale race machines.

Protected by Design

A dedicated storage case keeps the measuring blade protected and calibration accessories organised. Custom-fitted slots secure both the gauge and calibration block, helping prevent damage or loss while keeping everything ready for the next setup session.

Specifications

Size & Weight

• Size: 127.3 × 33 × 18 mm
• Weight: Approx. 40 g

Technical Specifications

• Power: 1 × AAA battery
• Measuring range: 2.00 mm – 38.0 mm
• Display units: mm / in
• Auto power-off: 300 seconds

Operating & Storage Conditions

• Operating temperature: -5°C to 60°C
• Operating humidity: ≤85% RH, non-condensing
• Storage temperature: 0°C to 35°C
• Storage humidity: ≤65% RH, non-condensing
